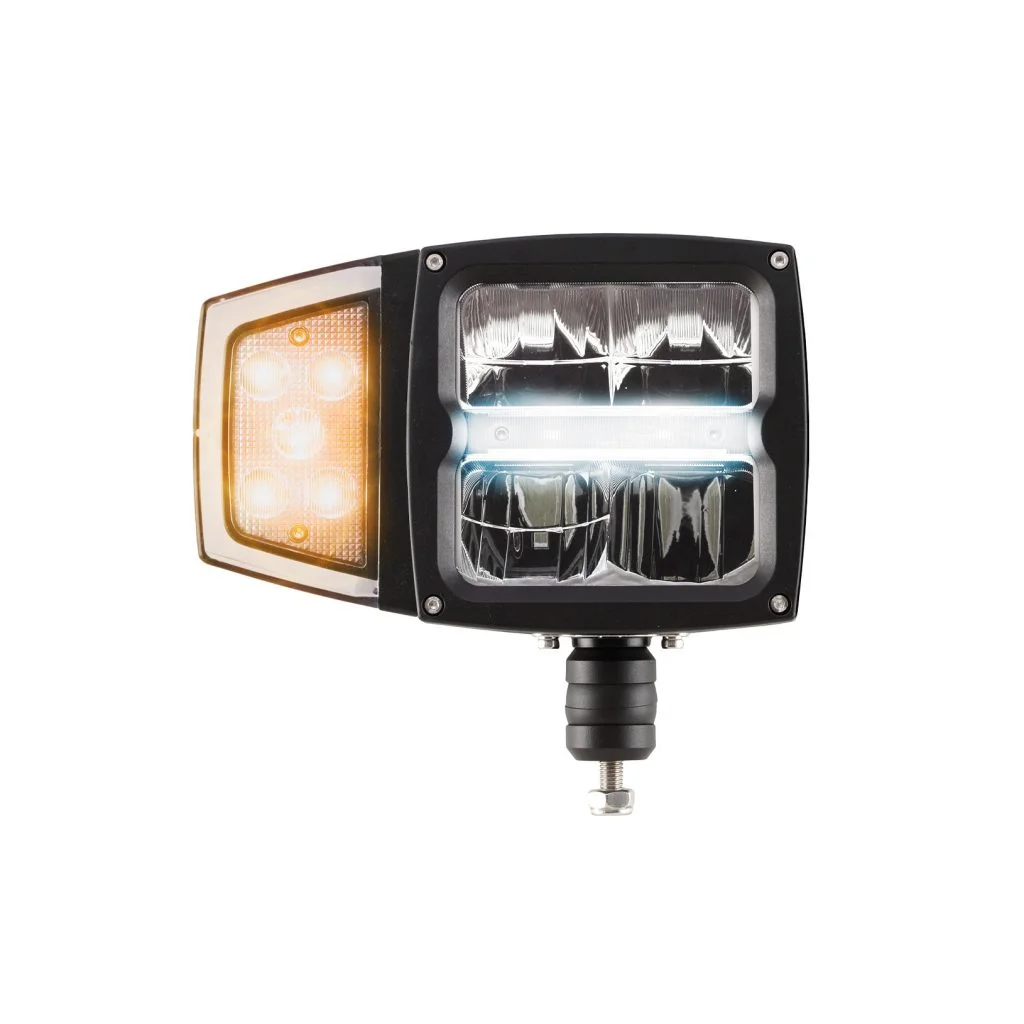

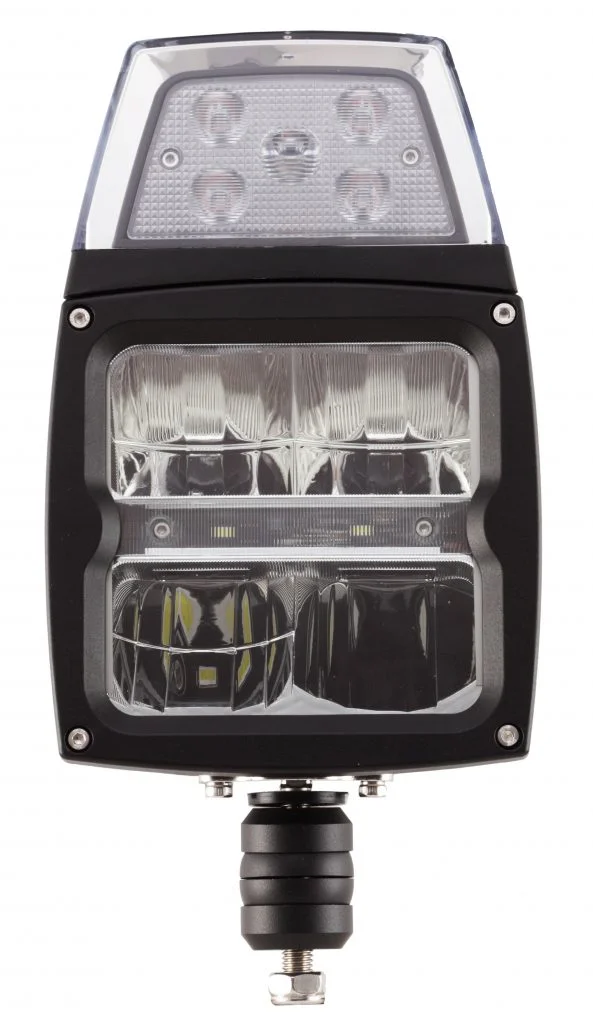

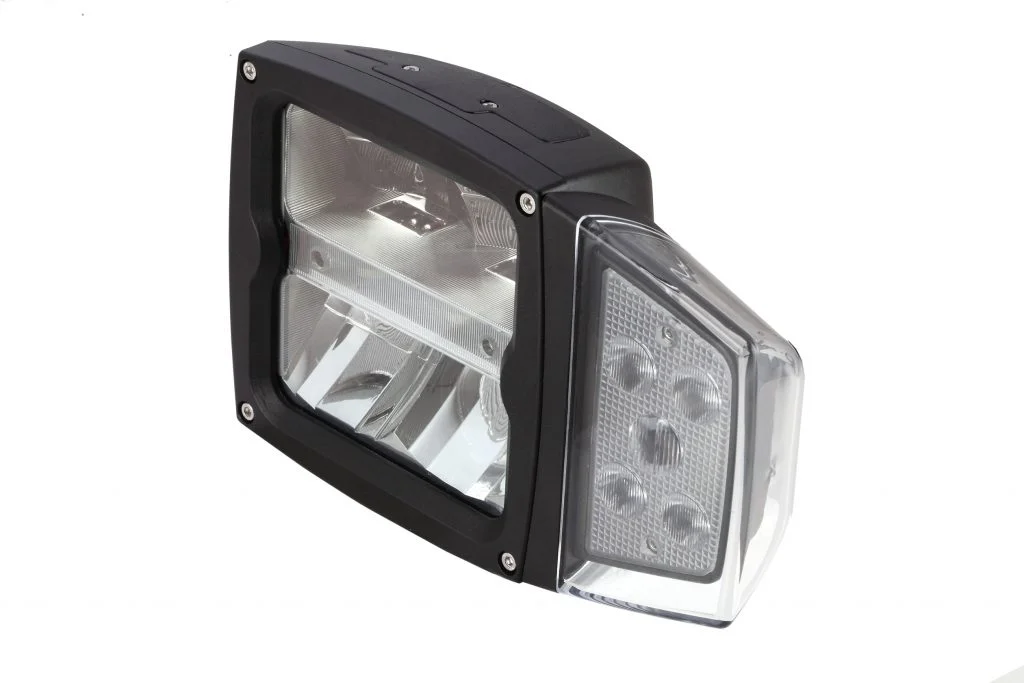

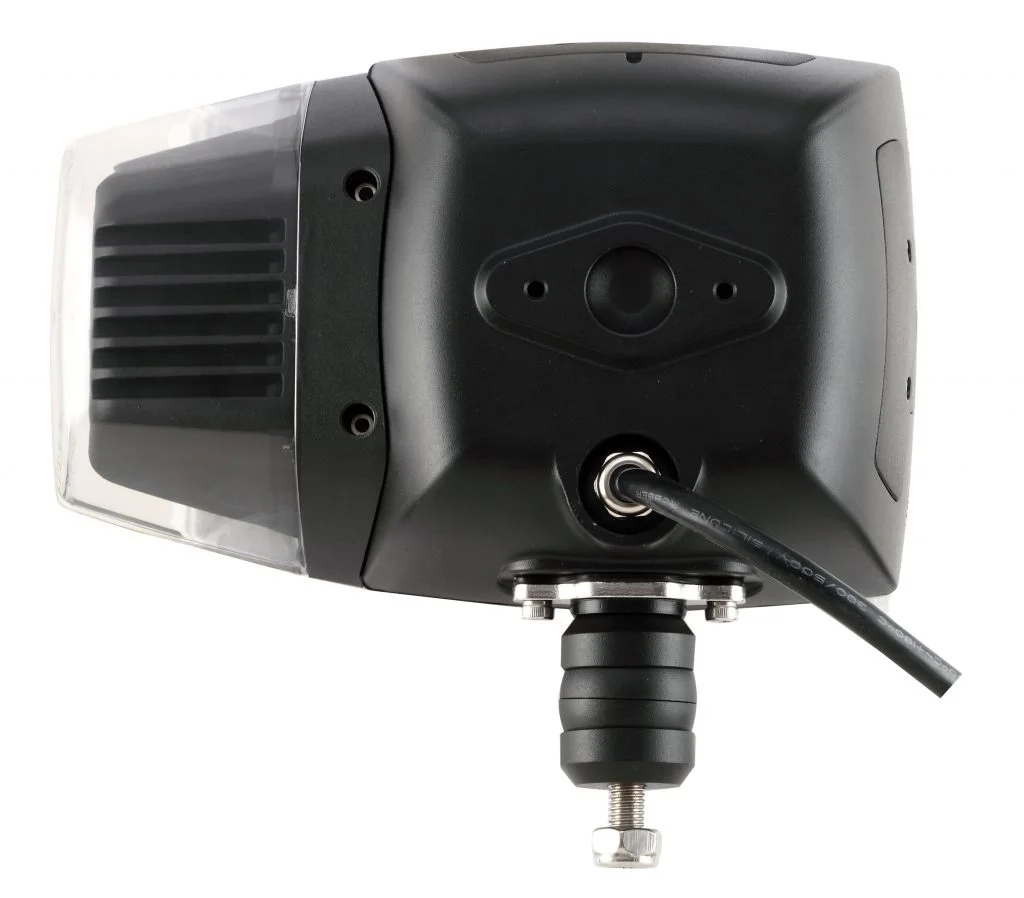

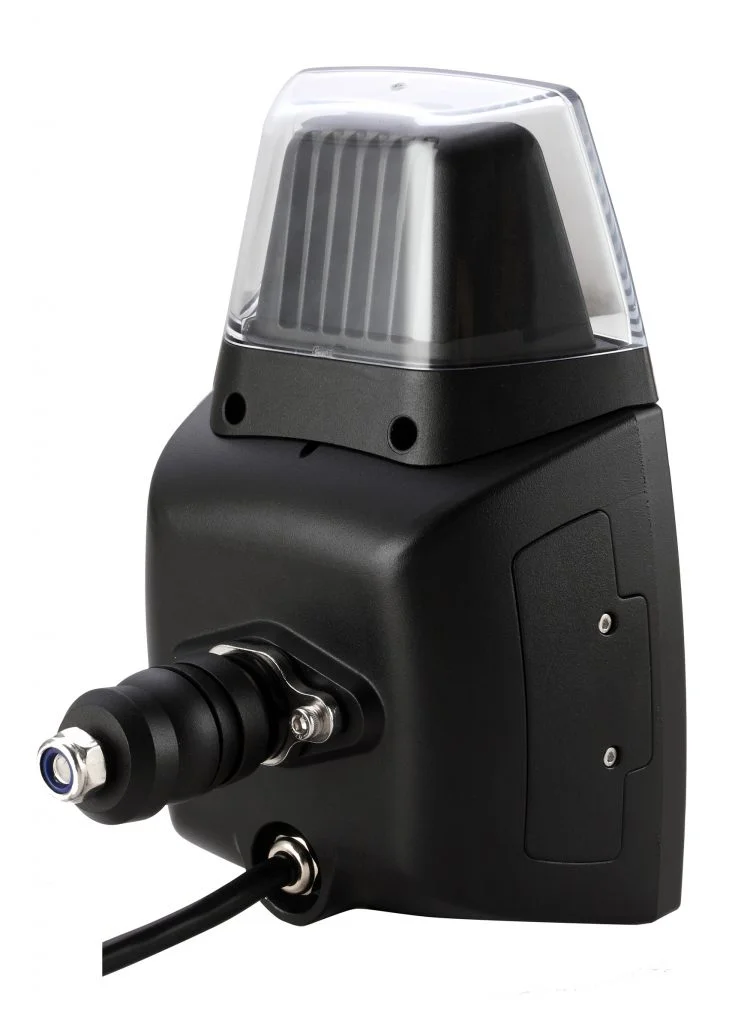

SNOWPLOW LAMP WITH HEATED LENS

266,56 €*

Produktnummer: 270710
Gewicht: 1.9 kg
Produktinformationen "SNOWPLOW LAMP WITH HEATED LENS"
  • Type of lamp LED
  • Type of LED High beam:ETI
    Low beam:ETI
    Park light:LUMILEDS
    Indicator:ProLight
  • PCS LED´s High beam: 4
    Low beam: 2
    Park light: 2
    Indicator: 8
  • Voltage (V DC) 10-30V DC
  • Theoretical effect (w) 12V High beam:38W
    Low beam:20W
    Park light:1.5W
    Indicator:20W
    Heated lens:20W
  • Theoretical effect (w) 24V High beam:38W
    Low beam:20W
    Park light:1.5W
    Indicator:20W
    Heated lens:20W
  • Functions High beam
    Low beam
    Park light
    Indicator
    Heated funtion
  • Theoretical lumen High beam:3600LM
    Low beam: 1800LM
    Park light :220LM
    Indicator :560LM
  • Actual lumen High beam:2900LM
    Low beam: 1500LM
    Park light :130LM
    Indicator :420LM

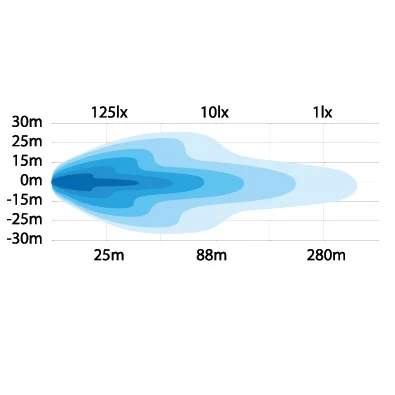

  • 1 LUX @ m High beam: 280
    Low beam: 163
  • Kelvin 5500
  • IP-class 68
  • Colour housing Black
  • Colour lens Clear
  • Beam pattern Driving beam
  • Position light Yes
  • Connection DT
  • Cable length (mm) 300
  • Material bracket Stainless steel
  • Material housing/chassi Aluminium
  • Material lens Tempered glass
  • Length (mm) 229
  • Depth (mm) 80
  • Height (mm) 150
  • Height including bracket (mm) 170
  • Operating temperature -40~+60 ° C
  • ADR-approved No
  • E-approved  Yes
  • According to regulation ECE R112.R7.R6
  • Reference number 17.5
  • EMC ECE R10
Eigenschaften "SNOWPLOW LAMP WITH HEATED LENS"
Fahrzeuge: Ford Ranger 2AB 2016-2019, Ford Ranger 2AB 2019-2023, Ford Ranger 2AB 2023+, Ford Ranger Raptor, Isuzu D-Max ATFS/ATFR 2017-2019, Isuzu D-Max BTF 2020+, Mercedes X-Klasse, Mitsubishi L200 KJOT 2015-2019, Mitsubishi L200 KJOT 2019+, Nissan Navara D23 2016+, Toyota Hilux AN1P 2016-2020, Toyota Hilux AN1P 2020+, Toyota Hilux N2 2011-2016, Toyota Land Cruiser J15 2000+, VW Amarok 2H 2010-2023, VW Amarok 2023+
